Model RA-64M
A Radio Interface for Analog Two-Way Radio Applications

    Pricing:
  • RA-64M Unassembled Kit with Metal Case (Blue, Black or Red) - $100.00 each.
  • RA-64M Assembled and Tested with Metal Case (Blue, Black or Red) - $130.00 each.
    		•
  • A (NO Case) option is not available.
    		•

    The RA-64M is available in a blue, black or red metal case.
    The "M" Series is designed to fit directly into our Metal cases and are easier to set-up and use.
    They don't require adapter rails or hardware.
    The board slides directly into the side rails of the metal case.

    Article on the features of the RA-64M

    Shipping and handling is calculated at checkout for US and International orders.
    First-Class shipping available to most locations worldwide, calculated at checkout.
    Most Credit Cards & PayPal accepted - order below.


    RA-64M - shown larger than actual size.


    This solution takes two Mini-DIN-6 equipped amateur radios (or commercial radios adapted to MD6) and easily make an AllStar Link repeater - using a single RA interface.

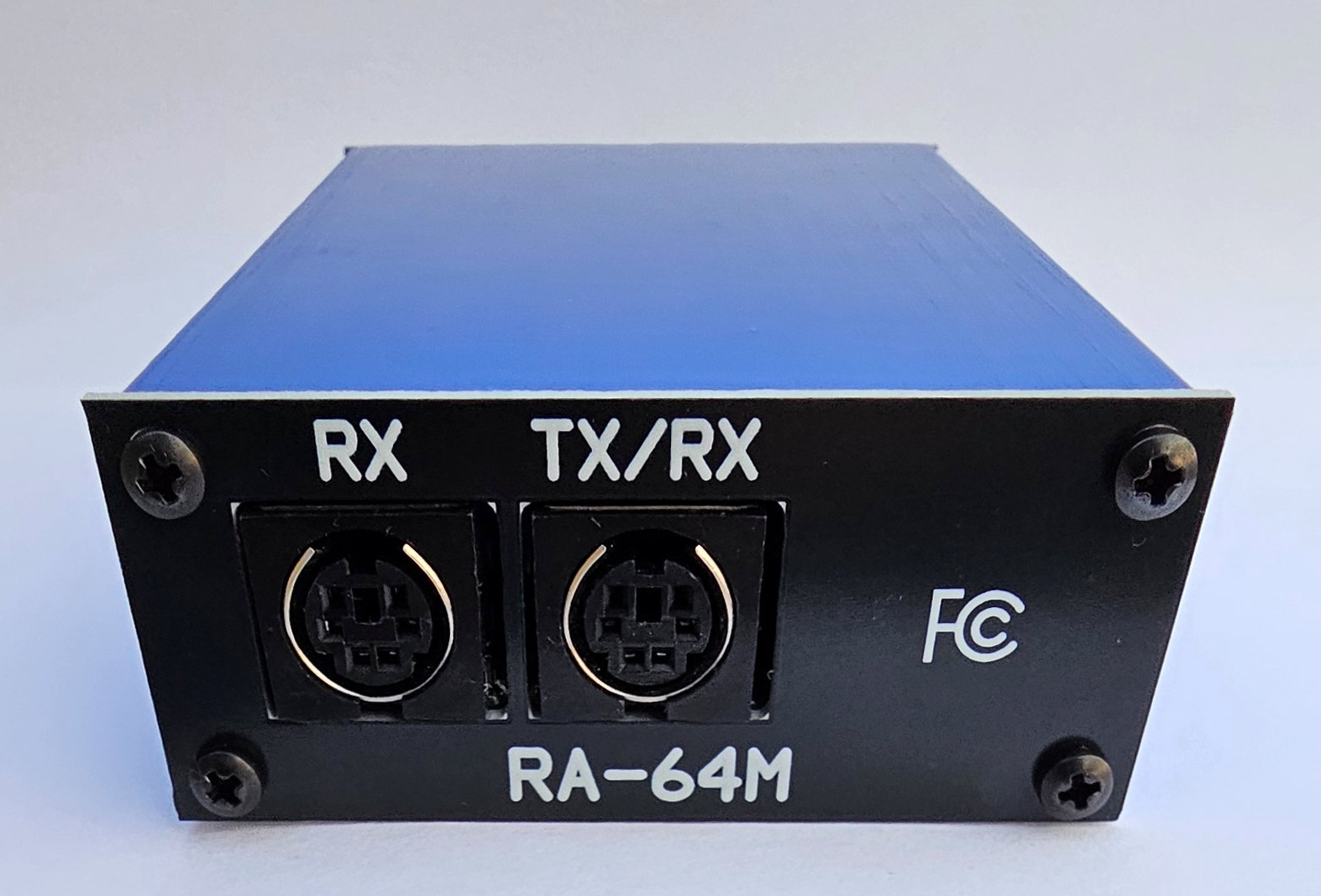

    The RA-64M has two Mini-DIN-6 radio connectors, one for transmit / receive and one for receive only. When used with AllStar Link, a dedicated transmit radio is connected to the TX/RX jack, and a receive radio is connected to the RX jack. These jacks are plainly identified by the custom RA-64M rear panel. The front panel has 4 LED holes and puts the yellow COS LED on the front panel.

    COS Activity Indication:
    By asserting a change of one of the GPIO on the CM119A, the Yellow LED can indicate receiver activity by following the software status of the COS. Some code is necessary to make this work and is different for HamVoIP and AllStarLink.

    In HamVoIP this code is necessary to make the COS LED option work.

    In AllStarLink this code is necessary to make the COS LED option work.


    RA-64M
    Secure PayPal Ordering
    Quantity can be changed at PayPal after pressing the "Add to Cart" button.

    Choose selection carefully!

    RA-64M Unassembled Kit with Blue, Black or Red Metal Case

    RA-64M Assembled & Tested with Blue, Black or Red Metal Case

    Radio Cables

    Add a 3 foot DIN6-Shortie Radio Cable

    Add a 6 foot DRAC-12 Radio Cable
    Add a 2.5 foot DIN6-164 Radio Cable

    Shipping amount is calculated at checkout for shipping to most locations Worldwide.

    Support Documentation:
    Support Documentation - schematic, jumper settings, parts list, installation and set-up instructions for the RA-64M.
    Summary Features List.
    Detailed Description.
    RA-64M Construction Article.

    Email Kevin Custer for ordering information, ordering by check, and/or support of this exciting product.

    Product of Masters Communications, all rights reserved.
    Specifications may change without notice.
